Coreless DC Brush Metal Motor.DC Metal Brush Coreless Motor L32mmD25mm 3V6V12V24V
Product introduction:
Assun Metal Brush Series Coreless motors are manufactured with coreless rotors and metal brush commutators.The high efficiency and precision character of metal brushed coreless motor made it perfect for energy critical and fast responding applications such as medical tools and robotic actuators.
Assun DC Brushed Motors are structure, neodymium magnet provides high performance, high power density, rare metal commutator, long brush life, compact design, winding reduces electric corrosion Low fever.
AM-CL2532MAN-0604
1.DC Coreless Metal Brush motor diameter 25mm. length 32mm. 6V.
2.Nominal voltage : 6V. No load speed ±12%: 4155 rpm.
3.No load current Max150% : 37 mA. Max cont.torque: 7.6mN.m. Rated Speed : 3125 rpm.
4.Rated Current: 600 mA. Rated Power: 2.5 W. Starting current :2308 mA. Stall Torque : 31mN.m.
5. Maximum power output : 3.4W. Maximum Efficiency : 76 %. Terminal resistance ±12% : 2.6Ω.
6.Weight : 73.0g.

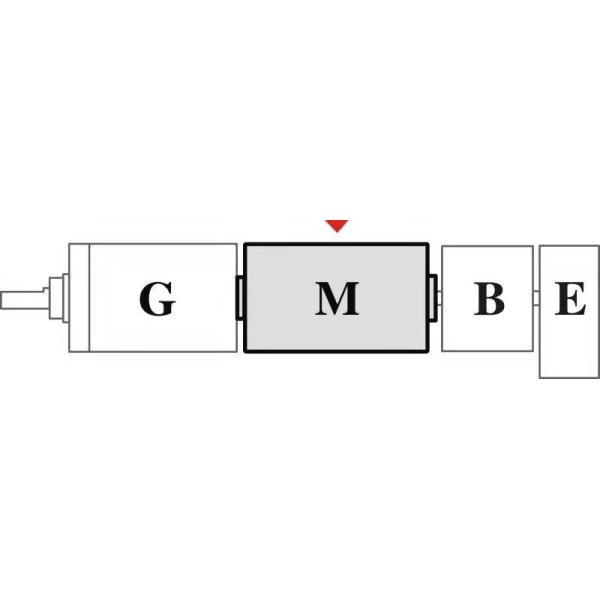

7.DC Coreless Metal Brushed motor can install the corresponding with Encoder and Planetarty gearbox.
Product Details:
| Motor Model | AM-CL2532MAN-0604 | Unit |
| Nominal voltage | 6 | V |
| No load speed ±12% | 4155 | rpm |
| No load current Max150% | 37 | mA |
| Max cont.torque | 7.6 | mN.m |
| Rated Speed | 3125 | rpm |
| Rated Current | 600 | mA |
| Rated Power | 2.5 | W |
| Starting current | 2308 | mA |
| Stall Torque | 31 | mN.m |
| Maximum power output | 3.4 | W |
| Maximum Efficiency | 76 | % |
| Terminal resistance ±12% | 2.6 | Ω |
| Inductance (1KHz) | 0.02 | mH |
| Mechanical time constant | 15.0 | ms |
| Moment of inertia | 10.6 | gcm² |
| Torque constant | 13.6 | mN.m / A |
| Speed constant | 704 | rpm / V |
| Speed / torque gradient | 134.9 | rpm / mN.m |
| Weight | 73.0 | g |
Recommended Gearbox:
Planetary Gearbox : AM-24GP. AM-28GP.
Recommended Encoder :
Encoder S : AM-EN2211S***
2~3 Channels.
Appliation:
Assun Motor application of positive element brushless precision servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
More information. please vist our website : www.assunmotor.com
|
|
